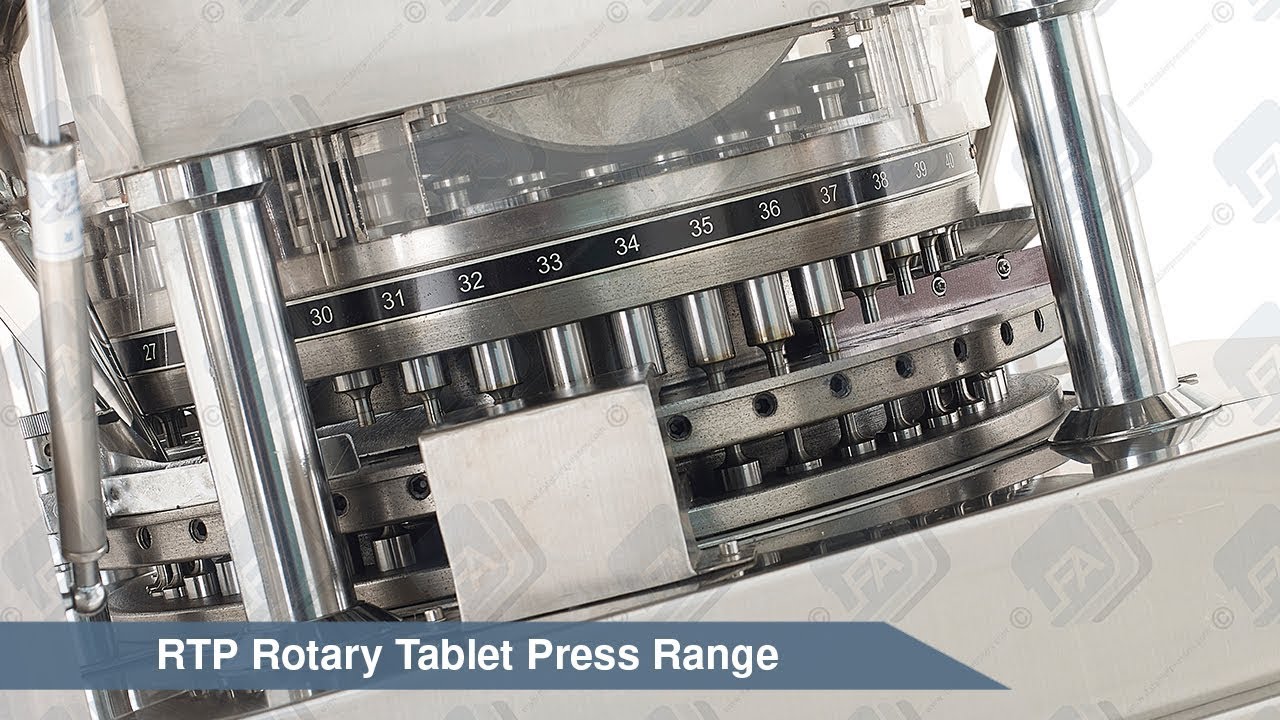

Rotary Tablet Presses
In the history of LFA we have been lucky enough to work with some great companies on some outstanding projects. We now hope that we can bring our knowledge base to help you with your business. Whether you are pressing, tablets, pills, pellets, glass preforms, ceramics or chemicals we have the press that is right for you. Our rotary presses are designed for the business that is looking to scale up its production.
With multiple tooling stations that offer fast production speeds, from 20,000 tablets per hour up to the hundreds of thousands, Rotary Tablet Presses are the mainstay of commercial tablet production. Thanks to their efficiency and high production volumes these machines offer low unit costs and minimal operator overheads. They are easy to use, require minimal operator training, and have been built to stand up to intensive commercial use. We have selected the most competitive and reliable machines around, to ensure that there is one in our range to suit all applications.
All our Rotary Tablet Presses are modern, solidly engineered machines with reliable components and dependable motors. Most have stainless steel parts and clear, all-round turret shields for safety and hygiene. Some have special features like intelligent, touch screen digital display controls, pressure overload protection, a safety cut-off button or other advanced safety features. Whether you are looking for ease of use or sheer production capacity, there is a Rotary Tablet Press in our range to meet your needs.
When it comes to installing your tablet press and training your staff LFA is here to support you. We are able to do onsite surveys and consultancy to make sure that you find the rotary tablet press that is right for you. We then offer up to a 3 year parts warranty and lifetime technical support to make sure that the downtime that can damage your business is kept to a complete minimum.
|Machine||RTP 9||RTP 33||RTP 10i||RTP 17i||RTP 23||RTP 41 (Euro)||RTP 41||HSTP 17||HSTP 26||HSTP 40|
|Number of Stations||9||33||10||17||23||41||41||17||26||40|
|Tooling Specifications||RTP||RTP||Euro D||Euro B||Euro D||Euro B||RTP||Euro D||Euro B||Euro BB|
|Max. Production Capacity/Hour||16,200||118,800||12,000||20,400||102,000||182,040||182,040||78,500||101,600||240,000|
|Max. Compression Force (Kn)||40||40||60||60||80||80||80||100||100||80|
|Max. Diameter of Tablet (mm)||12||12||25||19||25||19||12||25||19||19|
|Max. Fill Depth (mm)||15||15||14||14||15||15||15||16||12||16|
|Max. Thickness of Tablet (mm)||6||6||6||6||6||6||6||8||6||6|
|Max. Turret Speed (r/min)||30||30||20||20||37||37||37||55||65||70|
|Number of Filling Stations||1||2||1||1||2||2||2||1||1||1|
