Tablet Press Tooling

TDP Tooling
Our TDP punch dies are hard-wearing, high-quality, precision-made pieces that will press the crisp, clean-edged tablets you are looking for. ...
Our TDP punch dies are hard-wearing, high-quality, precision-made pieces that will press the crisp, clean-edged tablets you are looking for. Crafted from durable steel. Comes standard as GCr15 steel, but LFA can also offer S7, S5, 405 and more kinds of steel. Please contact our sales team to inquire about each type of material tooling we can provide. With low corrosion properties and the toughness required to last, these tablet press punches and dies will produce numerous batches of perfect tablets during the course of their working life, and offer strong resistance to chipping and flaking. PLEASE CHECK THE SIZING OF YOUR TOOLING TO ENSURE IT IS THE TDP® UNIVERSAL TOOLING SPECIFICATION. SEE BELOW FOR MORE DETAILS

Starting from
Special Price US$134.99
RTP Tooling
The price is for a single set of tooling. ...
The price is for a single set of tooling. If you need a full set, i.e. 41 x sets of tooling for an RTP 41, then you will need to change the quantity above the "Add to Cart" button. Read one of LFA's tablet press tooling articles: Tablet Tooling - How To Get The Biggest Punch Different Tooling Equipment For Oral Solid Dosage Tablets Tooling Designs - Different Mixes Need Different Punches Cup and Tablet - Depth and Consistency Compression Tooling Equipment Checking Your Tooling Importance of Punch Length

Starting from
US$145.99
TSM Tooling
The price is for a single set of tooling. ...
The price is for a single set of tooling. A minimum of 5 sets must be ordered. To edit the number of sets, change the quantity above the "Add to Cart" button Read one of LFA's tablet press tooling articles: Tablet Tooling - How To Get The Biggest Punch Different Tooling Equipment For Oral Solid Dosage Tablets Tooling Designs - Different Mixes Need Different Punches Cup and Tablet - Depth and Consistency Compression Tooling Equipment Checking Your Tooling Importance of Punch Length and Cup Depth Tablet Tools - How To Check and Measure Your Tooling

US$249.99
EU Tooling
The price is for a single set of tooling. ...
The price is for a single set of tooling. We have a minimum order of 5 sets for any EU specification tablet press tooling. To place an order, please change the quantity of tooling sets by entering the number of sets required above the "Add to Cart" button. Read one of LFA's tablet press tooling articles: Tablet Tooling - How To Get The Biggest Punch Different Tooling Equipment For Oral Solid Dosage Tablets Tooling Designs - Different Mixes Need Different Punches Cup and Tablet - Depth and Consistency Compression Tooling Equipment Checking Your Tooling Importance of Punch Length and Cup Depth Tablet Tools - How To Check and Measure Your Tooling

US$249.99

Creating your own special, personalised tablets or commercial tablets that stand out as unique has never been easier, thanks to our almost limitless choice of punch and die tooling sets now available. All of our tablet presses use standardised TDP, RTP, EU or TSM compatible tooling, which makes it easy to get attractive and striking finishes at a reasonable price.

We offer a superb selection of tooling for pill presses that allows you to make tablets of almost any size or outline, from lozenges to rectangles to pentagons and a whole array of other geometric shapes, plus with either bevelled or smooth edges. Whatever tablet you have in mind, the chances are we have a die to make it. If you don’t see what you are looking for here, please enquire. We are able to make custom dies to spec.

Our dies are hard wearing, high quality, precision made pieces that will press the crisp, clean edged tablets you are looking for. Treated carefully they will last and last, producing endless batches of perfect tablets.

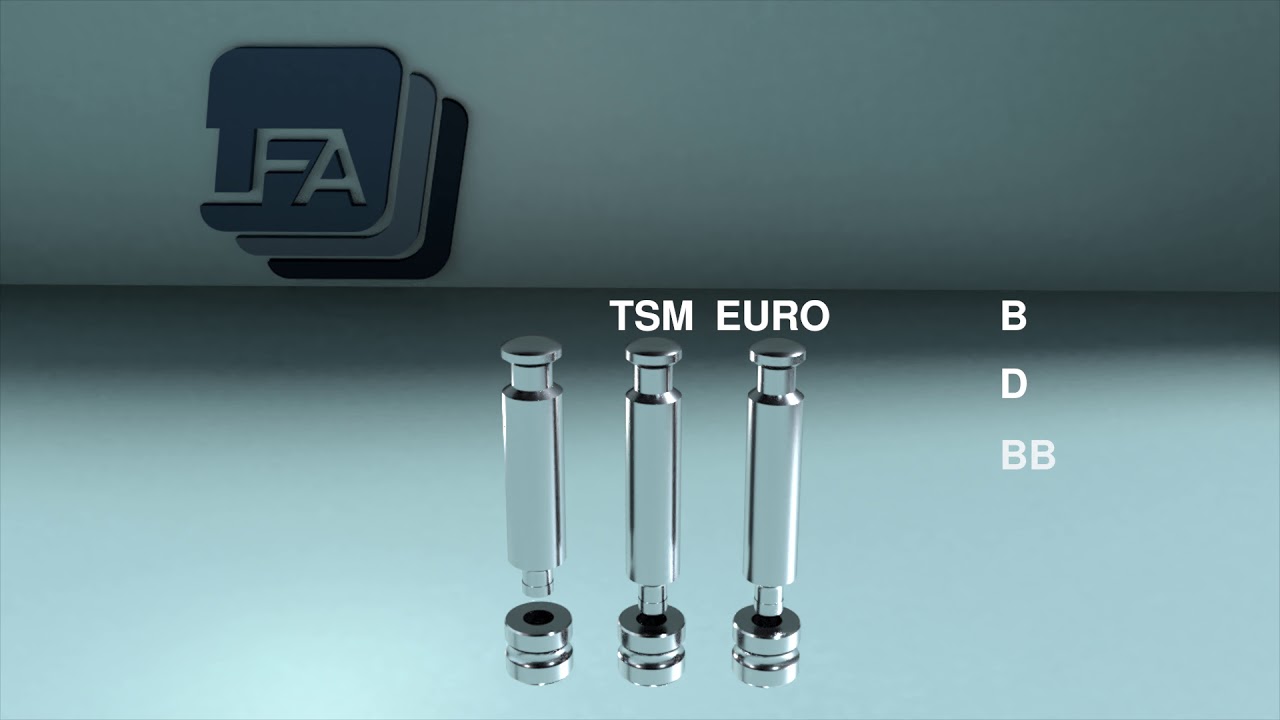

Tablet Press Tooling Specification Guide

Tooling Specification	Tooling Size	Working Length	Barrel Diameter	Die Diameter	Die Height	Max Size Round Tablet	Max Size Shaped Tablet
TDP		42 mm ±0.02 mm	10 mm	37 mm	22 mm	22 mm	22 mm
RTP		115 ±0.02 mm	22 mm	26 mm	22 mm	12 mm	14 mm
Euro	B	(133.6 - f) ±0.01 mm	19 mm	30.16 mm	22.22 mm	16 mm	19 mm
	D	(133.6 - f) ±0.01 mm	25.35 mm	38.1 mm	23.81 mm	25 mm	25 mm
	BB	(133.6 - f) ±0.01 mm	19 mm	24 mm	22.22 mm	13 mm	14 mm
	DB	(133.6 - f) ±0.01 mm	25.35 mm	30.16 mm	22.22 mm	19 mm	19 mm
TSM	B	(5.250 - f) ± 0.002 inch / (133.35 - f) ±0.05 mm	0.784 inch / 19 mm	1.1875 inch / 30.16 mm	0.875 inch / 22.22 mm	16 mm	19 mm
	D	(5.250 - f) ± 0.002 inch / (133.35 - f) ±0.05 mm	0.998 inch / 25.35 mm	1.5 inch / 38.1 mm	0.9375 inch / 23.81 mm	25 mm	25 mm
	BB	(5.250 - f) ± 0.002 inch / (133.35 - f) ±0.05 mm	0.784 inch / 19 mm	0.945 inch / 24 mm	0.875 inch / 22.22 mm	13 mm	14 mm
	DB	(5.250 - f) ± 0.002 inch / (133.35 - f) ±0.05 mm	0.998 inch / 25.35 mm	1.1875 inch / 30.16 mm	0.875 inch / 22.22 mm	19 mm	19 mm
"f" = the cup depth
